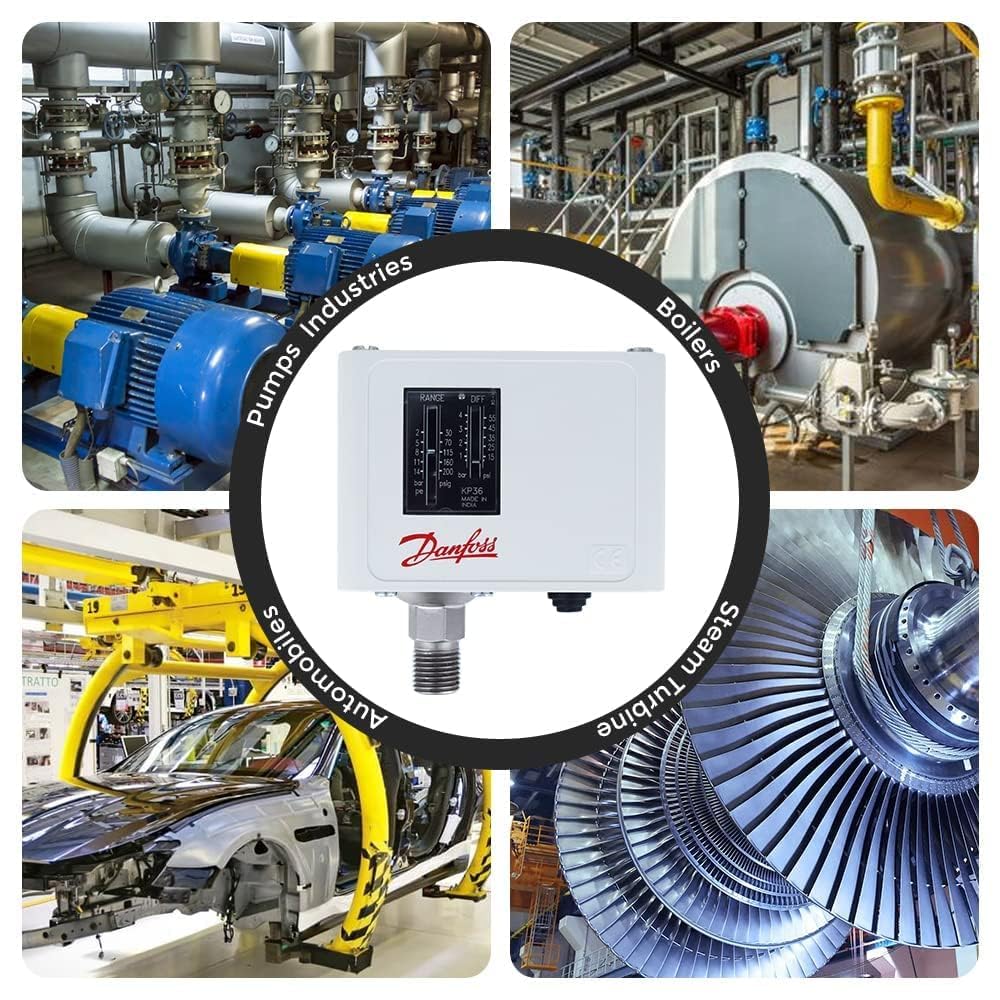

(1 Pack) Air Compressor Pressure Switch/ac Pressure Switch (Range: 30 PSI to 200 PSI)(Range: 2 Bar to 14 Bar, Power Supply: AC- 400 V, DC- 220 V, Connection Size: ¼ Flare) Model: KP36 (with Reducer)

KP36 Pressure Switch is used for regulating, monitoring, and alarm systems in the industry. KP 36 pressure switches are recommended for gaseous media (also water, but only when mounted directly on the pipe – do not use capillary tube mounting). and it is used for regulating, monitoring, and alarm systems in industrial applications.KP 36 Pressure Switch is suitable for gaseous media and air. The pressure switch is fitted with a single-pole switch changeover (SPDT) and can control single-phase ac motors of up to 2 kW directly.

• Reducer1 Connection Size : 1/4 UNF(F) X 1/4 BSP(F); Reducer2 Connection Size: 1/4 UNF (M) X 1/4 BSP (M)|Ambient Temperature Range: -40°F to 149 °F | Differential Pressure Range: 10 to 60 PSI | Regulation Range: 30 to 200 PSI | Max. Test Pressure: 320 PSI | Max. Working Pressure: 250 PSI
• Pressure range category: Medium pressure | Pressure Connections Size: 1/4" | Standard: ISO 228-1, Connection Type: G | Pressure Male/Female: Male | Enclosure rating IP: 30 | Electrical Connection: Rubber cable gland | Electrical connection size: 6-14 mm.
• Maximum Test Pressure: 320 PSI | Electrical Connection size: Pg 13.5 | Thread connection: G ¼ | Regulation range: 30 to 200 PSI | Electrical Connection: Screwed Cable Entry | Maximum Working Pressure: 250 PSI
• Enclosure rating IP: IP30 | Weight: 0.33 kg | Contact Function: SPDT (Single-pole changeover switch) gold | Pressure Connection Standard: ISO 228-1
• Supply Scope: 1 unit of KP 36 Pressure Switch and Instruction Manual | Applications: Water Pump Control, Steam Boilers, Industry Applications, Refrigeration Compressors, Air Conditioning Systems, Turbines, Heavy Engineering, Industries, HVAC.
