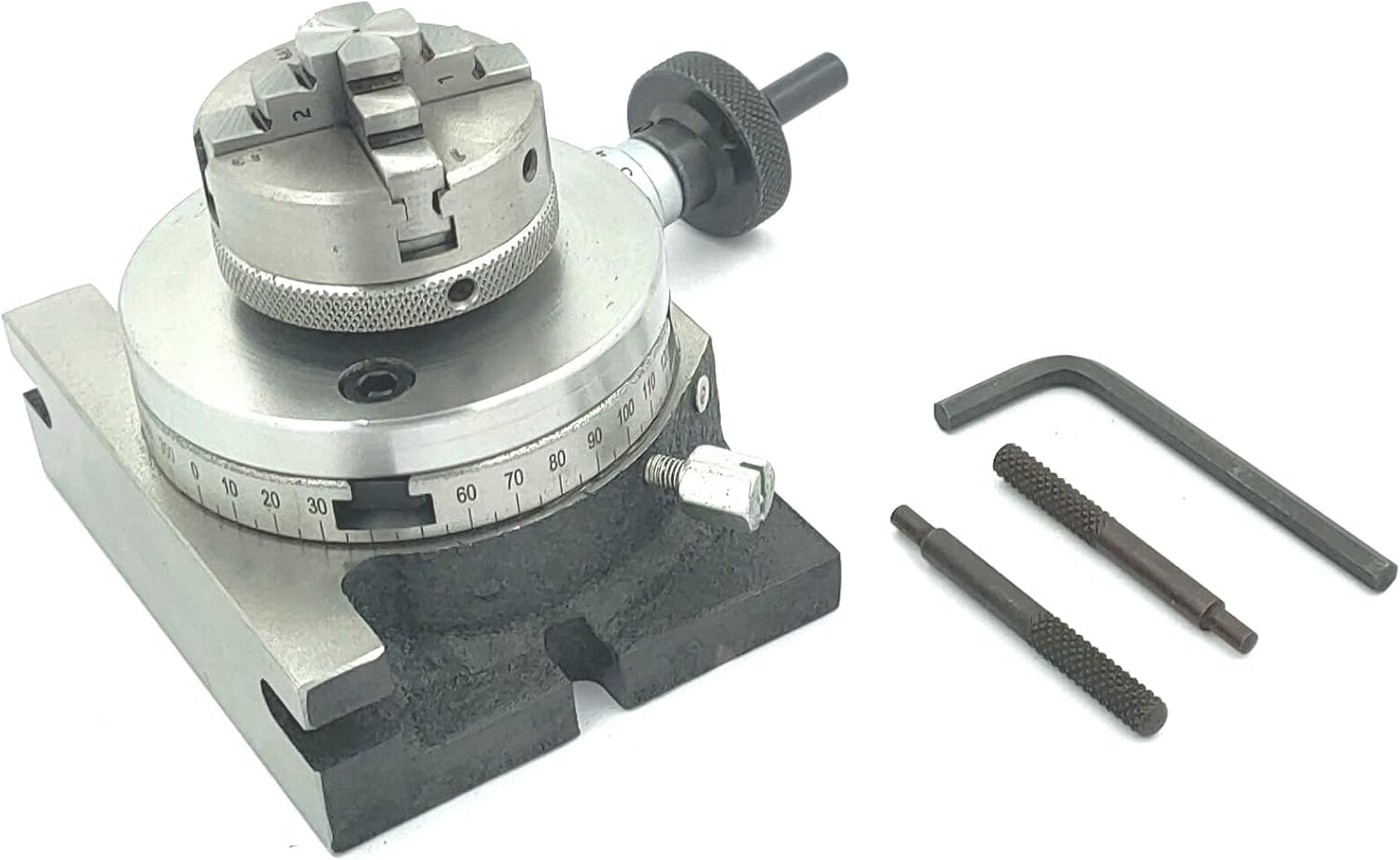

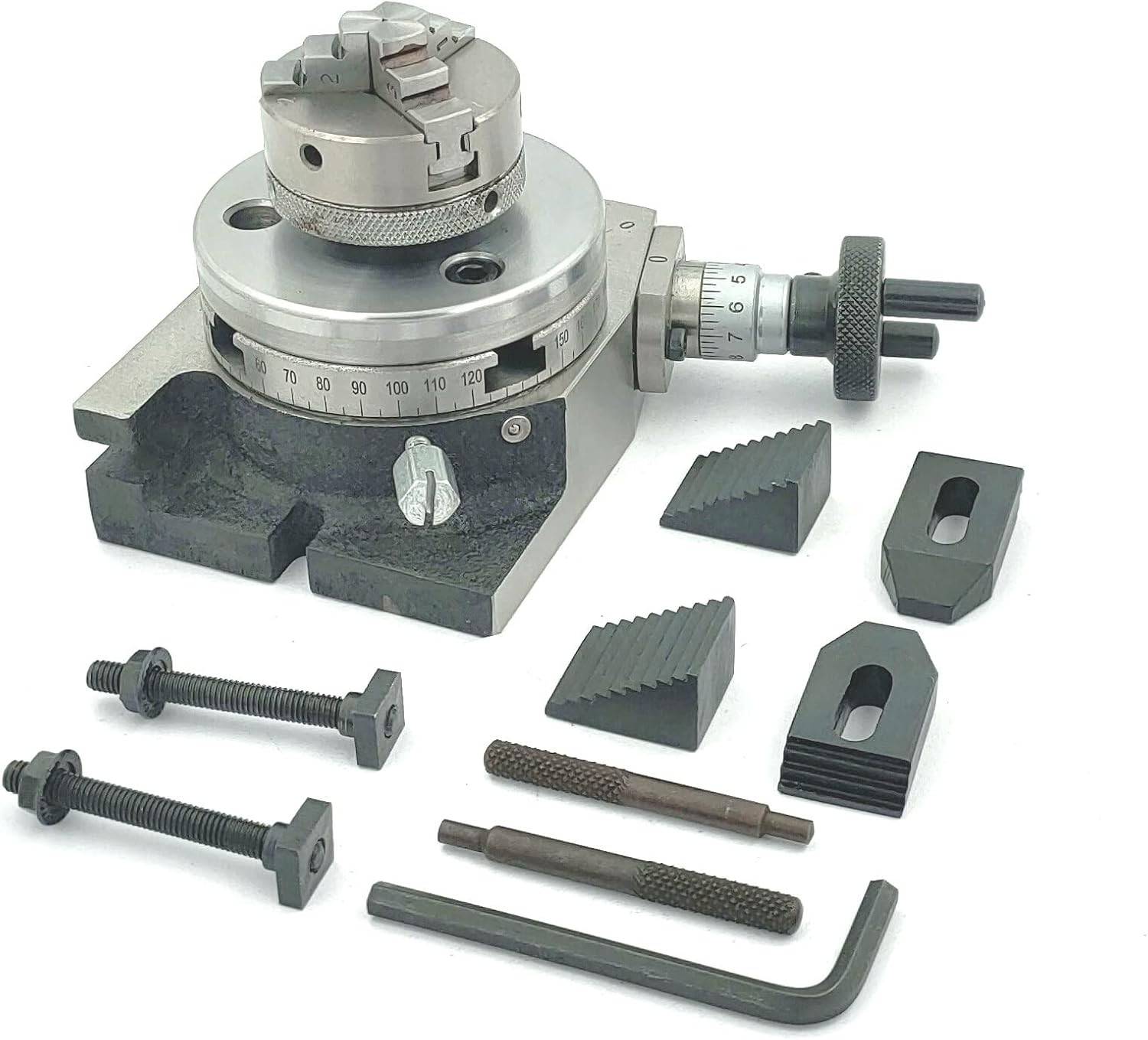

Assorts 3"Inch II 80 mm Low Profile Milling Rotary Table (50 mm 4 Jaws Chuck with Back Plate & M6 Clamp Kits)

Quality Milling Indexing Combo Kit includes 1 Low profile 3" II 80 mm Rotary Table supplied with suitable Back Plate & T-nuts Bolts for your small light milling jobs. Clamp kit is an optional accessory to buy along Rotary Table's Horizontal Center Height When Laid Flat : 44 Mm (without Chuck Assembly) & 98 Mm (with Chuck Assembly On It) .center Height In Vertical Position Is 45 Mm Approx. Can Be Mounted Both In Horizontal & Vertical Position. Rotary Table's Worm : Gear Ratio Is 1: 10,that Means One Handle Rotation Turns The 360 Degrees Graduation Table By 10 Degrees. Hand Wheel Is Graduated In Divisions Of 10 Min & Can Be Set To Zero. Base Dimensions: 110 X 85 Mm Ii 2 X U Slots For Clamping: 8 Mm It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.

• Quality Milling Indexing Combo Kit includes 1 Low profile 3" II 80 mm Rotary Table supplied with suitable Back Plate & T-nuts Bolts for your small light milling jobs. Clamp kit is an optional accessory to buy along
• Rotary Table's Horizontal Center Height When Laid Flat : 44 Mm (without Chuck Assembly) & 98 Mm (with Chuck Assembly On It) .center Height In Vertical Position Is 45 Mm Approx. Can Be Mounted Both In Horizontal & Vertical Position.
• Rotary Table's Worm : Gear Ratio Is 1: 10,that Means One Handle Rotation Turns The 360 Degrees Graduation Table By 10 Degrees. Hand Wheel Is Graduated In Divisions Of 10 Min & Can Be Set To Zero. Base Dimensions: 110 X 85 Mm Ii 2 X U Slots For Clamping: 8 Mm
• It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.
