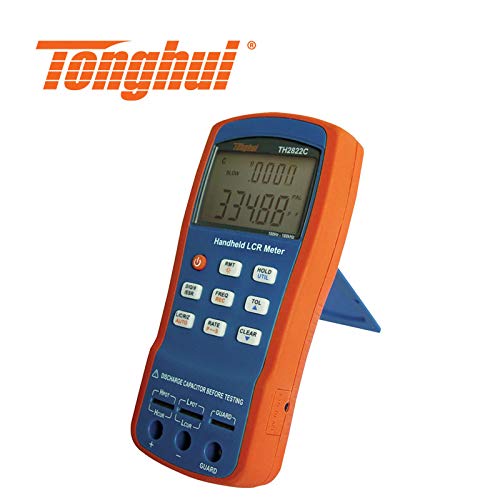

TH2822C Handheld LCR Meter with Test Frequency 100Hz, 120Hz,1kHz,10kHz, 100kHz

Features ■ Max. Basic accuracy: 0.25% ■ Maximum test signal frequency : 100kHz ■ Selectable test signal level ■ With DCR function ■ Enhanced protection capability of input terminal impact ■ 40000 counts for primary parameter, D/Q resolution 0.0001 ■ Typical ultra-low consumption: 25mA ■ Innovatively compatible terminal configuration: 5-terminal test slot and 3-terminal rubber jack ■ Intellectualized auto LCR function ■ AC test speed up to 4 meas/sec (DCR: 3 meas/sec), fast automatic range switch design ■ Constant 100Ω output impedance ■ Percentage display and 4-tolerance comparator: 1/5/10/20% ■ Battery charge in startup & shutdown ■ Test terminal protection function ■ Data-hold, Max./Min./Average value recording ■ Real-time function configuration selection and working condition hold capacity ■ Standard configuration Mini – USB communication interface and SCPI command set

• ■Digital LCR meter, ESR tester, capacitance meter, inductance meter, resistance meter.■ Percentage display and 4-tolerance comparator: 1/5/10/20% ■ Battery charge in startup & shutdown ■ Test terminal protection function ■ Data-hold, Max./Min./Average value recording
