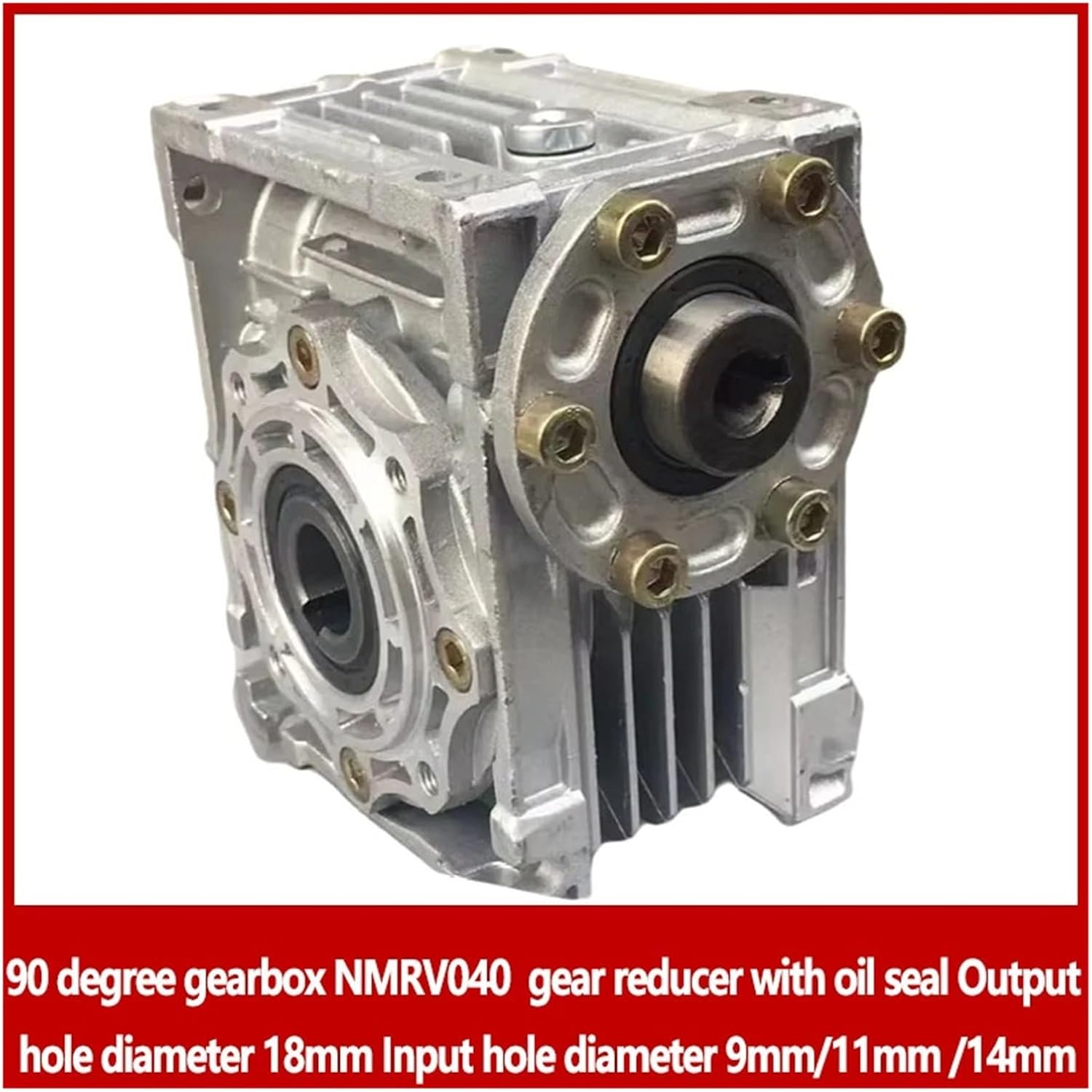

90 Degree Gearbox NMRV040 Worm Gear Reducer with Oil Seal Output Hole Diameter 18mm Input Hole Diameter 9mm/11mm /14mm
4.3 (119 items)
Limited Time SaleUS$120.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210847551 | Release Date | 2026/04/04 | List Price | US$80.00 | Model Number | 210847551 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
90 degree gearbox NMRV040 worm gear reducer with oil seal Input hole diameter 9mm /11mm /14mm Output hole diameter 18mmworm gear reducer*1PC1. With ratio of 5:1, 10: 1, 15: 1, 20: 1, 25: 1, 30:1,40: 1, 50: 1, 60: 1, 80: 1 100:1 for customers.2. The input hole diameter is9mm/11mm/14mmfor this link, You can choose according to your needs.3. This reducer has an oil seal andno input flange. and it's worm gearbox connection without an output shaft, If you need the flange or output shaft, please order on other product links.We also have NMRV25/30/50/63/75/90 Models, if need, contact us please.Color: silver and blue for random shipment (Sometimes only one color is available)The mounting dimension of worm reducer NMRV040:(unit:mm)We also have worm reducerparts such asoutput shft, torque arm and output flange, if any need, Please click the link below to order.18mm Single Output Shaft or Double Shaft Worm Output NMRV040 ,If you need to contact us:If you need torque arm, please contact us!If you need output flange, please contact us!Output Speed : Varies with changes in speed ratioInput Speed : about 1500rpmRated Power : 0.06Kw-0.37KWOutput Torque : 11N.m-53 N.mModel Number : NMRV040 /RV040Gearing Arrangement : WormOrigin : Mainland Chinaoutput hole diameter : 18mmInput hole diameter : 9mm/11mm/14mm
- Treayes 90 Degree Gearbox NMRV040 Worm Gear Reducer with Oil Seal Output Hole Diameter 18mm Input Hole Diameter 9mm/11mm /14mm
| Size | 9mm |
|---|---|
| Color | Ratio 30 to 1 |
| Brand Name | Treayes |
| Item Weight | 50 Grams |
| Manufacturer | Pinnengdianshang |
| Model Number | Pinnengdianshang |
| Connector Type | Adapter |
| Exterior Finish | Alloy Steel |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
